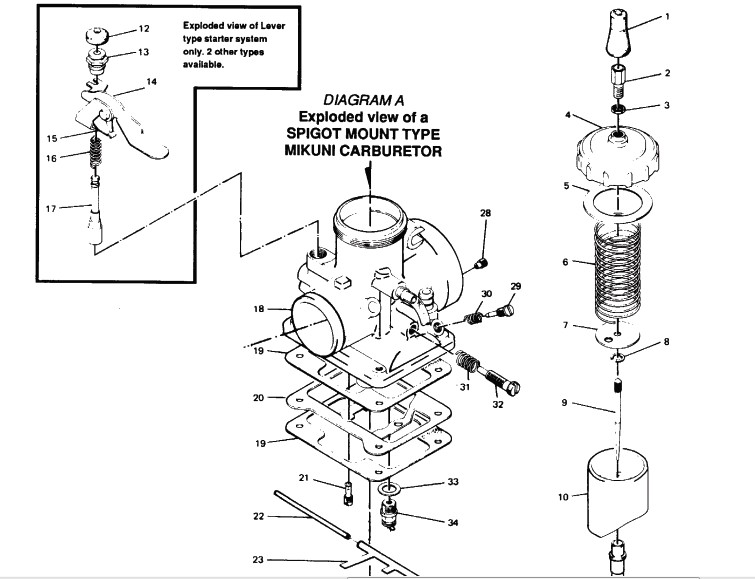

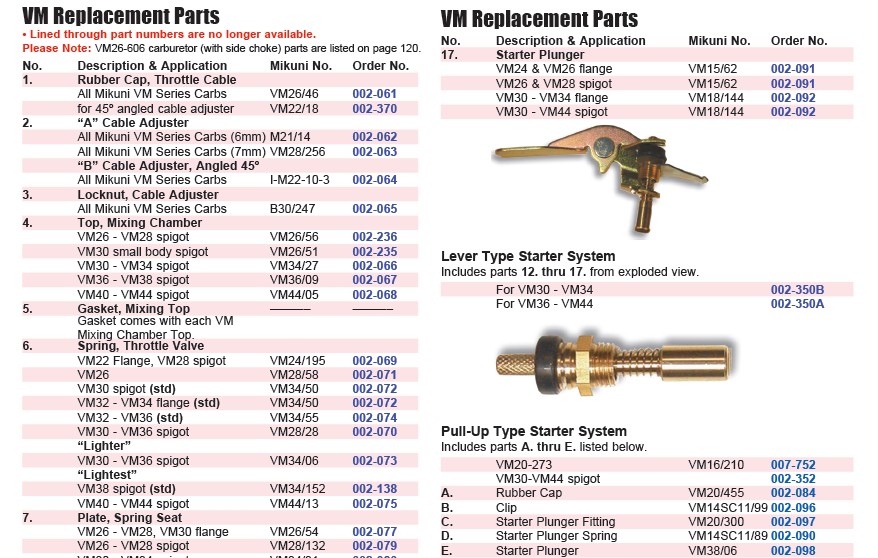

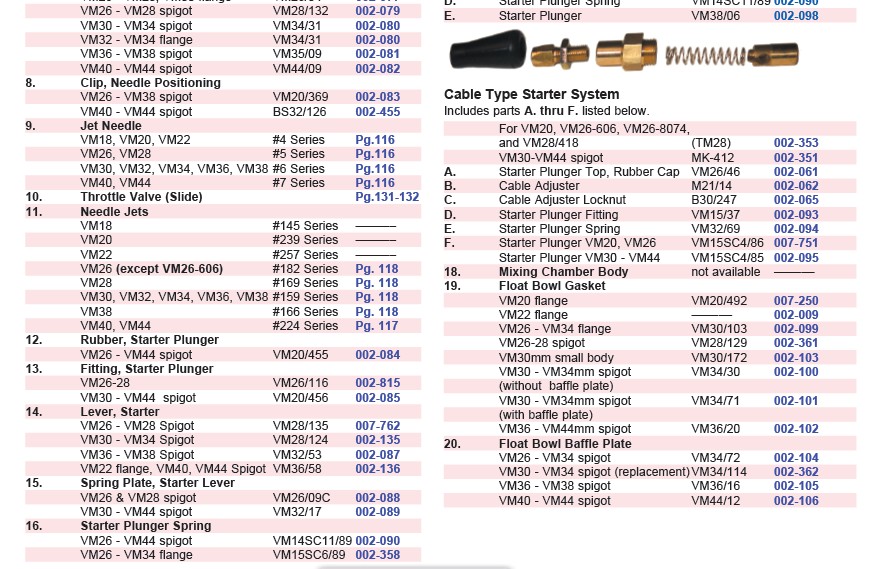

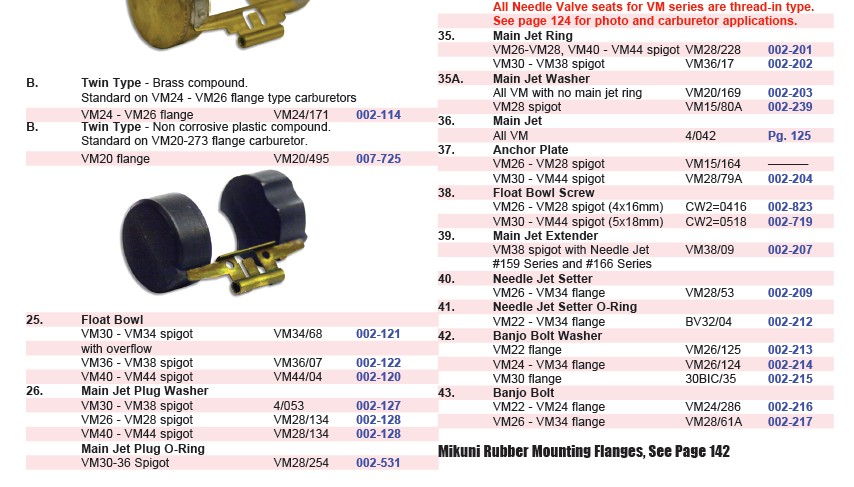

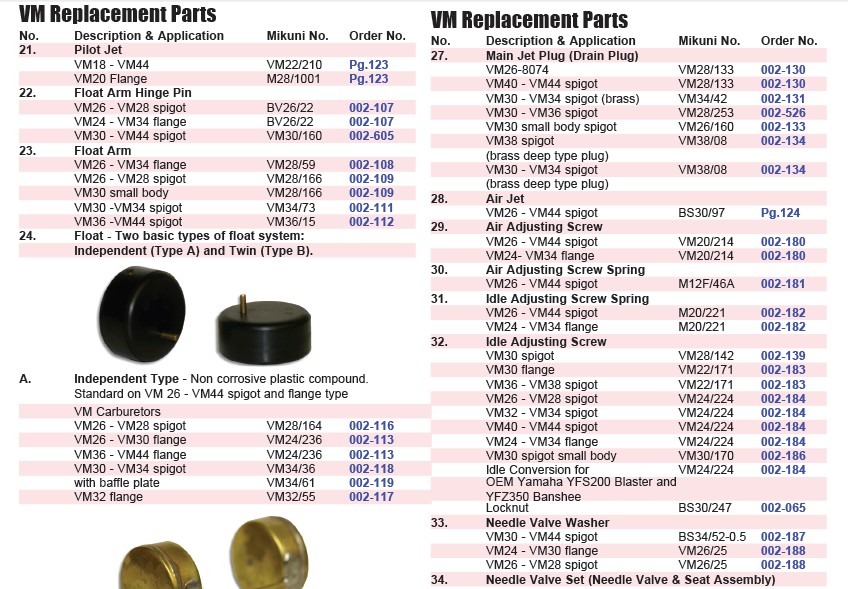

Use this exploded view to Get the necessary part Numbers at the bottom of the Page. Some of the VM series Carbs do not have Carb Rebuild Kits.  Choose the Blue part #'s, then contact us at support@pjmotorsports.com and we will get you the Parts.
Or Call 503-873-8992
                                    Thank You

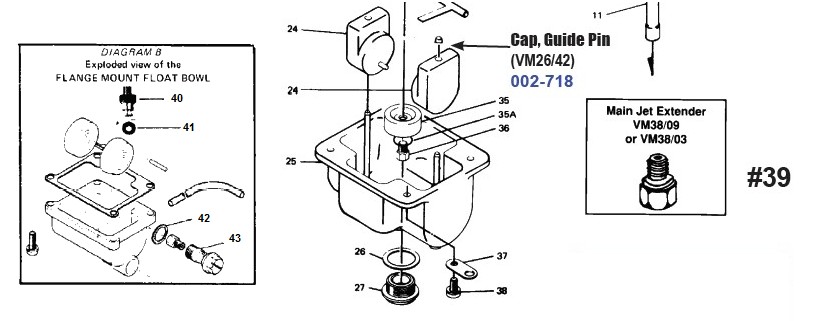

This Diagram is for Older Small VM
Flange Mount Carbs
Needle Valves Page
Click Here
